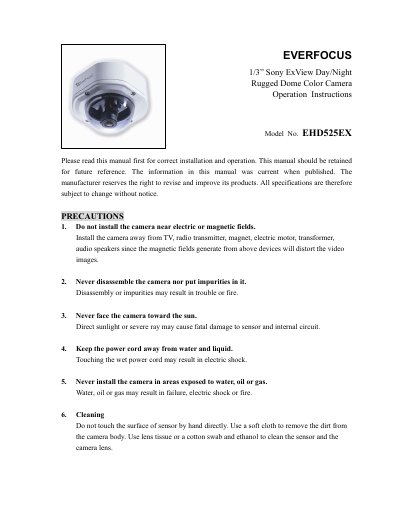

EverFocus EHD525EX Rugged Dome Camera Operation Instructions

This manual introduces the installation, operation and precautions for EVERFOCUS 1/3” Sony ExView Day/Night Rugged Dome Color Camera EHD525EX

Brand: EverFocus
Category: Monitoring Equipment
Document type: User Manual
Language: English
Pages: 15
File format: PDF
File size: 524 KB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: 166FEFC3AB23E3E794E0BBFF911BFFEC
PDF: EverFocus EHD525EX Rugged Dome Camera Operation Instructions PDF

About this manual

This manual provides operation instructions for the EverFocus EHD525EX, a vandal-resistant color rugged dome camera featuring a 1/3-inch Sony ExView CCD sensor. The device is designed with True Day/Night functionality, an integrated digital signal processor, and a built-in heater to withstand harsh environments ranging from -40°C to 50°C.

What's inside

Precautions
Features
Specifications
Package Contents
Installation
Wire Connection
View Angle Adjustment
DIP Switch Function

Specifications

Pickup Device	1/3'' SONY EXView CCD
Horizontal Resolution	560TVL
Sensitivity	0.1Lux/F=1.2
Power Source	12VDC/24VAC
Operating Temperature	-40°C~50°C
Weatherproof Rating	IP66

Frequently asked questions

What is the operating temperature range?

The camera can operate at temperatures between -40°C and 50°C.

Can the camera be powered by DC or AC?

Yes, it supports dual voltage input of 12VDC or 24VAC.

Is the camera vandal resistant?

Yes, it is designed to withstand a blow from a 10-pound sledgehammer.
