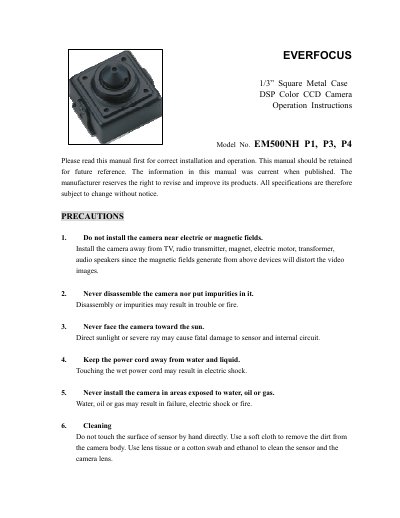

This document is the operation instructions for EVERFOCUS 1/3” Square Metal Case DSP Color CCD Camera. It provides information on correct installation and operation. Precautions are also mentioned, such as not installing the camera near electric or magnetic fields and not disassembling the camera or putting impurities in it. Additionally, cleaning methods for the camera and usage limitations are discussed.
This manual provides operation instructions for the EverFocus EM500NH series 1/3 inch square metal case DSP color CCD cameras (models P1, P3, and P4). It details precautions for installation, such as avoiding magnetic fields and direct sunlight, and outlines the package contents including the camera unit, mounting bracket, and cables.
The document features a detailed specifications section listing technical data for each model variant, including lens types, image sensor details, video output, and power requirements. It also includes step-by-step installation guides for mounting the camera and connecting power and video cables, along with a troubleshooting section for common issues like no power or horizontal picture output.
| Image Sensor | 1/3" Sony Super HAD CCD |
|---|---|
| Horizontal Resolution | Over 550 TVL |
| Electronic Shutter | 1/60 ~ 1/100,000 sec |
| Power Source | DC12V |
| Operating Temperature | 10° C ~ 45° C |
| Weight | 0.3 kg |
The camera should be used at temperatures within 0° ~ 40° C (32° to 104° F) according to general precautions, though specifications list 10° C ~ 45° C.
Connect the pigtail (male power adapter) to the camera female power connector, ensuring the black wire with the white stripe is positive.
Magnetic fields generated by devices like TV, radio transmitters, or electric motors will distort the video images.
