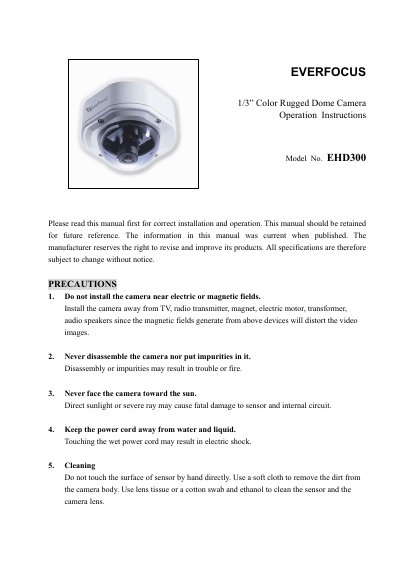

EVERFOCUS 1/3” Color Rugged Dome Camera Operation Instructions, introduces the features and characteristics of the product and the method of use
This manual provides operation instructions for the EverFocus EHD300 1/3" Color Rugged Dome Camera. It covers installation procedures, including mounting the base and wiring connections, as well as adjusting view angles and lens settings. The document also details the functions of various DIP switches, such as Flickerless, Mirror, AGC, and Day/Night modes. This manual is written in Chinese.
| Pickup Device | 1/3'' SONY Super HAD CCD |
|---|---|
| Horizontal Resolution | 520TVL |
| Sensitivity | 0.4Lux/F=1.2 |
| S/N Ratio | Over 48dB |
| Power Source | 12VDC/24VAC |
| Weatherproof Rating | IP66 |
| Operating Temperature | -10°C~50°C |
The camera should be used at temperatures between -10°C and 50°C.
When light is under 5 Lux, it switches to black and white; over 10 Lux, it switches to color.
The maximum power consumption is 2W.
