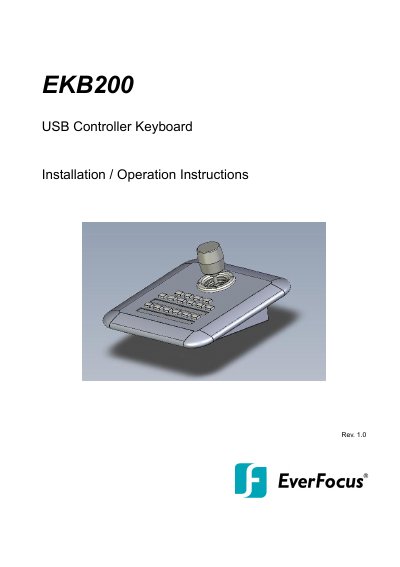

EverFocus EKB200 USB Controller Keyboard Installation Operation Instructions

This document is the EKB200 USB Controller Keyboard's operation manual, which provides installation and operation instructions.

Brand: EverFocus
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 17
File format: PDF
File size: 1.4 MB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: 5FBCD9712FAF9243851B6911D28BE9C5
PDF: EverFocus EKB200 USB Controller Keyboard Installation Operation Instructions PDF

About this manual

The EverFocus EKB200 is a USB Controller Keyboard designed to facilitate network video surveillance, specifically for controlling PTZ cameras. It features a 3-axis joystick, four dedicated PTZ function keys (Iris +/-, Focus +/-), and twelve free programmable switches. The device operates as a standard HID class device compatible with Windows XP, 2000, and Vista, requiring no external power supply as it draws power from the USB bus.

What's inside

Introduction
Delivery Scope
Specifications
USB Connection
Sunk-In Desk Installation
Key Labels
Function Check and Calibration
Installation of JoyMap
Operation with PowerCon Management Software

Specifications

Interface	USB 1.1 (USB 2.0 compatible)
Power consumption	5 VDC/ 80mA (maximum)
Dimensions	200.5 (W) x 200.5 (D) x 108.9 (H) mm

Frequently asked questions

What operating systems are supported for the JoyMapper application?

The application supports Microsoft Windows XP, 2000, and Vista.

Does the EKB200 require an external power supply?

No, the device has no external power supply requirement and is powered by the USB bus.

How many programmable switches does the EKB200 have?

The device includes twelve free programmable switches.
