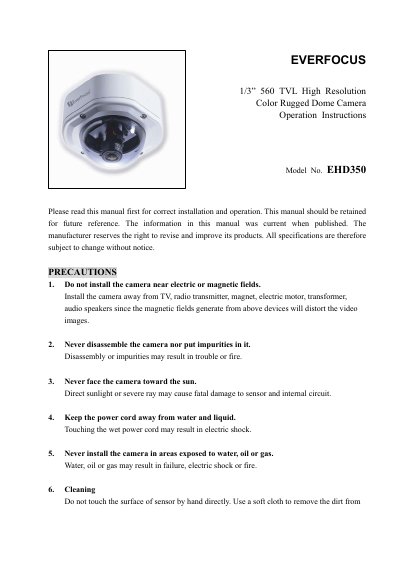

This manual is for the EVERFOCUS 1/3” 560 TVL High Resolution Color Rugged Dome Camera. It provides installation and operation instructions, as well as precautions.
This manual provides operation instructions for the EverFocus EHD350, a 1/3-inch 560 TVL high-resolution color rugged dome camera. The device features a vandal-resistant polycarbonate shell, a built-in heater for low-temperature operation, and a 3-axis angle-view design. It is designed for high-profile crime-prone applications such as building entrances and retail stores.
| Pickup Device | 1/3'' SONY Super HAD CCD |
|---|---|
| Horizontal Resolution | 560TVL |
| Sensitivity | 0.5Lux/F=1.2 |
| Power Source | 12VDC/24VAC |
| Operating Temperature | -40°C~50°C |
| Weatherproof Rating | IP66 |
The power consumption is 20.5VA max when using 24VAC with the heater ON.
Yes, the rugged dome is designed to withstand the impact of a 10 lb sledgehammer.
Yes, the camera has a built-in heater that triggers when the temperature falls below 10C /50 F.
