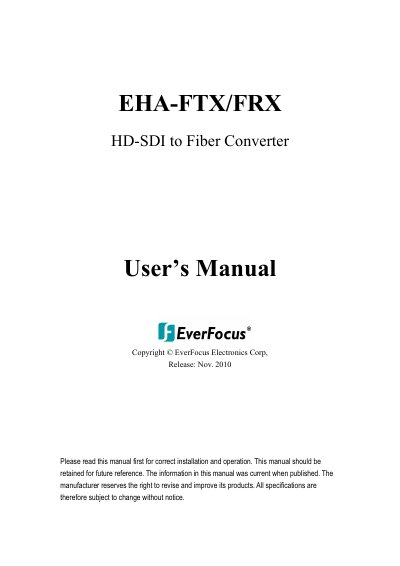

This document is the user manual for the EHA-FTX/FRX HD-SDI to Fiber Converter by EverFocus Electronics Corp. It provides instructions for correct installation and operation of the product. The manual also includes precautions such as avoiding installation near electric or magnetic fields, and avoiding contact with water, oil, or gas.
The EverFocus EHA-FTX/FRX is a pair of converters designed to transport high-definition digital video in HD-SDI standards over fiber optics. The EHA-FTX modulates the signal at the camera end, while the EHA-FRX offloads and converts it back to HD-SDI compliant with SMPTE 292M and 296M standards at data rates up to 1.485Gb/s.
| Video bandwidth | 1.485Gbps |
|---|---|
| Video support | 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @24/30Hz |
| Input Connector (FTX) | 1x BNC [HD-SDI] 3G 750 inter-locked socket |
| Output Connector (FRX) | 1 X BNC [HD-SDI] 3G 750 inter-locked socket |
| Power supply | 12VDC |
| Operation temperature | 0~50°C / 32~122°F |
| Relative humidity | 20%~80% |
It supports high-definition HD-SDI digital video at 720p60, 1080i60 and 1080p30 formats at all frame rates.
The converters operate at a data rate of up to 1.485Gb/s.
