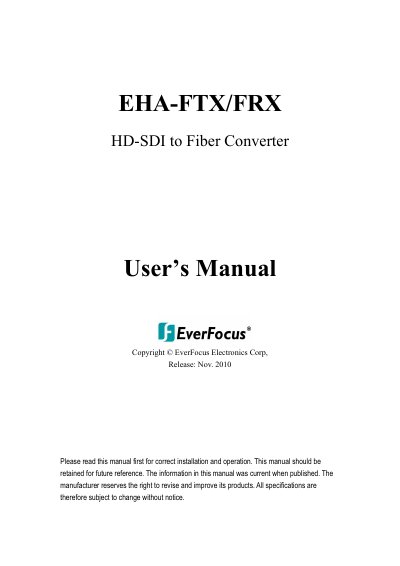

EverFocus EHA-FTX/FRX HD-SDI to Fiber Converter User's Manual

EHA-FTX/FRX HD-SDI to Fiber Converter User's Manual, introduces the installation, use, precautions and other contents of the product.

Brand: EverFocus
Category: Monitoring Equipment
Document type: User Manual
Language: English
Pages: 7
File format: PDF
File size: 288 KB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: 5F87828772503C86E105903A5DB70DC1
PDF: EverFocus EHA-FTX/FRX HD-SDI to Fiber Converter User's Manual PDF

About this manual

The EverFocus EHA-FTX/FRX is a pair of converters designed to transport high-definition digital video in HD-SDI standards over fiber optic cables. The EHA-FTX modulates the signal at the source, while the EHA-FRX offloads and converts it back to HD-SDI compliant with SMPTE 292M and 296M standards at data rates up to 1.485Gb/s.

What's inside

Precautions
Introduction
Features
Specifications
Package Contents
Optional Fiber Module
Front Panel
Rear Panel
Cable Requirements

Specifications

Data Rate	1.485Gb/s
Video Support	720p, 1080i, 1080p
Input Connector (FTX)	BNC
Output Connector (FRX)	BNC
Power Supply	12VDC
Operation Temperature	0~50°C

Frequently asked questions

What video formats are supported?

The device supports 720p60, 1080i60, and 1080p30 formats at all frame rates.

What is the maximum data rate?

The converter operates at a data rate of up to 1.485Gb/s.

What are the power requirements?

The unit requires an input power source of 12VDC.
