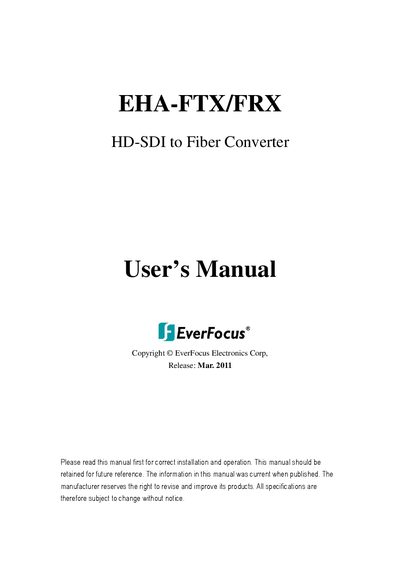

EHA-FTX/FRX is a HD-SDI to Fiber Converter from EverFocus, this document describes the installation and operation of the product.
The EverFocus EHA-FTX/FRX is a pair of converters designed to transport high-definition digital video in HD-SDI standards over fiber optics. The EHA-FTX modulates the signal at the source, while the EHA-FRX offloads and converts it back to HD-SDI compliant with SMPTE 292M and 296M standards at data rates up to 1.485Gb/s.
| Video bandwidth | 1.485Gbps |
|---|---|
| Video support | 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @25/30Hz |
| Input Connector (FTX) | 1x BNC [HD-SDI] 3G 750 inter-locked socket |
| Input Connector (FRX) | 1 X Simplex LC SFP (Hot Pluggable) |
| Output Connector (FTX) | 1 X Simplex LC SFP (Hot Pluggable) |
| Output Connector (FRX) | 1 X BNC [HD-SDI] 3G 750 inter-locked socket |
| Power supply | 12VDC |
| Operation temperature | 0~50°C / 32~122°F |
It supports high-definition HD-SDI digital video at 720p60, 1080i60 and 1080p30 formats at all frame rates.
The converter operates at a data rate up to 1.485Gb/s.
