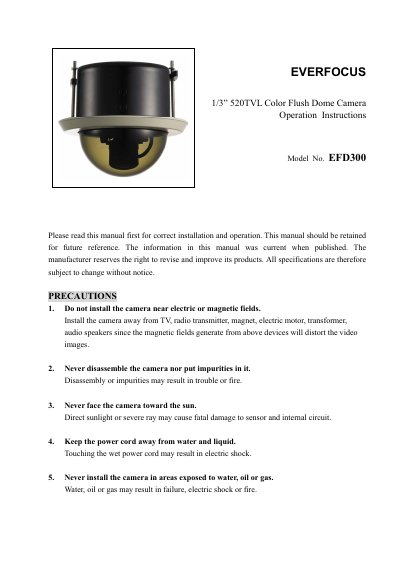

EverFocus Electronics Corp EFD300A_manual

This operation manual introduces the correct installation and operation methods of EVERFOCUS 1/3” 520TVL Color Flush Dome Camera.

Brand: EverFocus
Category: Monitoring Equipment
Document type: User Manual
Language: English
Pages: 10
File format: PDF
File size: 350 KB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: 167E3A6F67352478752F8978B93C6FE4
PDF: EverFocus Electronics Corp EFD300A_manual PDF

About this manual

This manual provides operation instructions for the EverFocus EFD300 High Resolution Flush Dome Camera Series. The camera features a 1/3" SONY Super HAD color CCD sensor with over 520 TV lines of horizontal resolution and includes built-in vari-focal auto iris lens capabilities.

What's inside

Precautions
Features
Specifications
Standard Accessories
Hardware Overview
Installation
Lens Adjustment
Camera Setting

Specifications

Pickup Device	1/3" SONY Super HAD CCD
Horizontal Resolution	520TVL
Sensitivity	0.1Lux/F=1.2
Video Format	NTSC or PAL
Power Source	12VDC/24VAC
Dimensions	135mm(O.D.) x 112mm(H)

Frequently asked questions

What are the operating temperature and humidity limits?

The camera should be used at temperatures between 0°C and 50°C with humidity between 20% and 80%.

What power source is required for the EFD300?

The camera requires a power source of either 12VDC or 24VAC.

Does the EFD300 support both NTSC and PAL video formats?

Yes, the system is available for both NTSC or PAL.
