EverFocus Electronics Corp EFC-02-2A_manual

This manual introduces the features, specifications, installation methods, and connection methods of Flex II series controllers.

Brand: EverFocus
Category: Monitoring Equipment
Document type: User Manual
Language: English
Pages: 90
File format: PDF
File size: 1.6 MB
Published: 09 July, 2012
Updated: 01 October, 2023
MD5 checksum: A6EF5CDEAB0D6A38841E39DF2F54CBE4
PDF: EverFocus Electronics Corp EFC-02-2A_manual PDF

About this manual

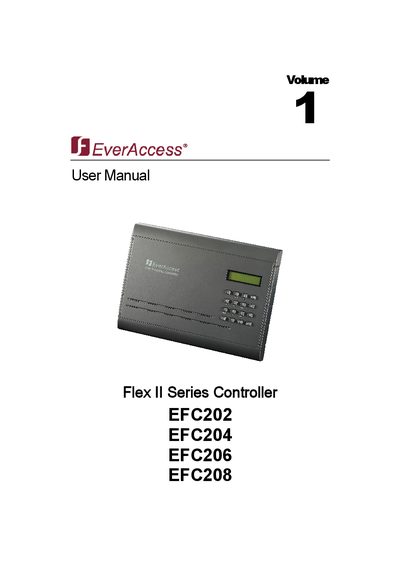

This manual provides instructions for the EverAccess Flex II Series controller, specifically models EFC202, EFC204, EFC206, and EFC208. It details the modular design which supports up to 4 door modules and 8 readers, allowing for standalone operation or real-time management via PC software.

What's inside

Product Overview
Hardware Installation
Connecting Readers
Connection to Door Lock
Connecting Controller and Computer
Connecting Power
Controller Functionality and Configuration
Software Setup

Specifications

Maximum Readers	8 readers
Maximum Door Modules	4 door modules
Maximum Controllers in Network	127 controllers
Card Storage Capacity	50,000 cards
Event Storage Capacity	170,000 events

Frequently asked questions

Can the controller operate without a PC?

Yes, the controller can operate stand-alone without a PC connection.

What communication protocols are supported?

The controller supports RS-485 and TCP/IP for communication with a PC.

Can additional alarm modules be added?

Yes, an additional alarm module can be added to offer up to 10 alarm inputs and 18 alarm outputs.
