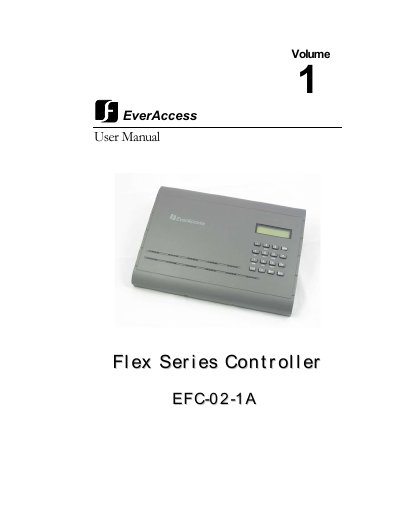

EverFocus EFC-02-1A Access Controller Instruction Guide

This manual introduces the features and installation methods of the Flex series controllers.

Brand: EverFocus
Category: Monitoring Equipment
Document type: User Manual
Language: English
Pages: 74
File format: PDF
File size: 957 KB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: F96E05397D7C3AA25208463697C5FDB7
PDF: EverFocus EFC-02-1A Access Controller Instruction Guide PDF

About this manual

This manual provides instructions for the EverAccess Flex Series Controller (part number EFC-02-1A), a modular electronic access control device. It details hardware installation, including mounting the enclosure and connecting modules for readers, doors, and alarms. The guide also explains how to connect the controller to a computer via RS232 or RS485 and how to power the system.

What's inside

Product Overview
Hardware Installation
Connecting Controller to Computer
Connecting Power
Controller Functionality and Configuration
Software Setup

Specifications

Maximum cards	9999
Maximum records	16000
Supported readers	2 (expandable up to 8)
Controlled doors	2 (expandable up to 8)
Communication format	Wiegand26 or EverAccess RS-232 format
Supply voltage	DC 9~18V
Dimension (in)	118 x 85 x 13

Frequently asked questions

Can the controller operate without a PC connection?

Yes, the controller can operate stand-alone without a PC connection.

What is the maximum number of controllers that can be connected via RS-485?

Up to 127 controllers can be connected via RS-485 bus.
