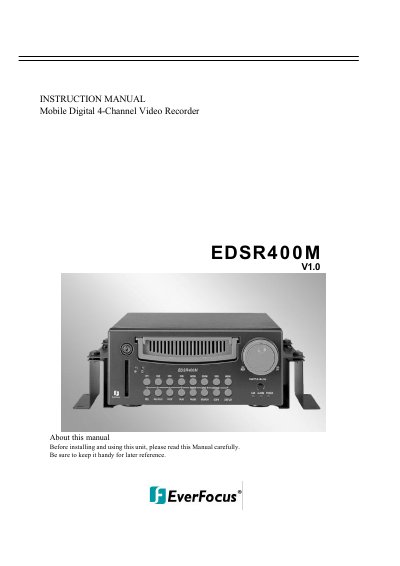

This is an instruction manual for EDSR400M Mobile Digital 4-Channel Video Recorder. Please read this manual carefully before installing and using the unit, and keep it handy for future reference.
This document is an instruction manual for the EverFocus EDSR400M Mobile Digital 4-Channel Video Recorder. It provides essential information regarding safety warnings, installation guidelines, and operational precautions to ensure proper use of the device in vehicle environments.
The manual details specific requirements for mounting the unit, selecting appropriate locations to avoid vibration and moisture, and connecting power sources safely. It also includes technical specifications for network interfaces and image compression, along with contact information for EverFocus offices worldwide.
| Network Interface | 10Mbits/s Ethernet (10Base T) |
|---|---|
| LAN Controller Chip | RealTek 8019 |
| Protocols Supported | HTTP, TCP/IP, ICMP, ARP |
The manual recommends using 160G Maxtor Hard Disk Drives with 3.5" Hard Disk DVRs.
The manual recommends using 40G or 60G HITACHI Hard Disk Drives with 2.5" Hard Disk DV Rs.
Indoor type DVRs should operate between 0°C ~ +40°C, while outdoor type DVRs can go up to PC ~ +50°C.
