This document is the product datasheet for the BAT140 series Schottky barrier diodes. It introduces the features and characteristics of this series of products, including low switching losses, the ability to absorb very high surge current, fast recovery time, and plastic SMD packaging. Suitable for low power switched-mode power supplies, rectification, polarity protection and other applications.

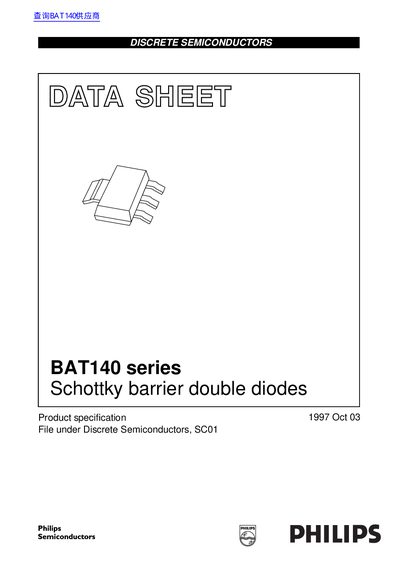

This document is a datasheet for the Philips BAT140 series of Schottky barrier double diodes. The devices are planar structures encapsulated in a plastic SOT223 surface-mount device (SMD) package. Key features include low switching losses, high surge current absorption capability, and fast recovery time.
| Continuous reverse voltage (per diode) | 40 V |
|---|---|
| Continuous forward current (per diode) | 1 A |
| Storage temperature range | -65 to +150 °C |
| Junction temperature maximum | 125 °C |
| Thermal resistance (junction to ambient) | 100 K/W |
The maximum continuous forward current per diode is 1 A.
The device can be stored between -65 and +150 °C.
The maximum forward voltage drop at 1 A is 500 mV.
