The 1PS300 is a high-speed double diode with a very small plastic SMD package. It has a maximum switching speed of 4 ns, maximum continuous reverse voltage of 80 V, maximum repetitive peak reverse voltage of 85 V, and maximum repetitive peak forward current of 500 mA.

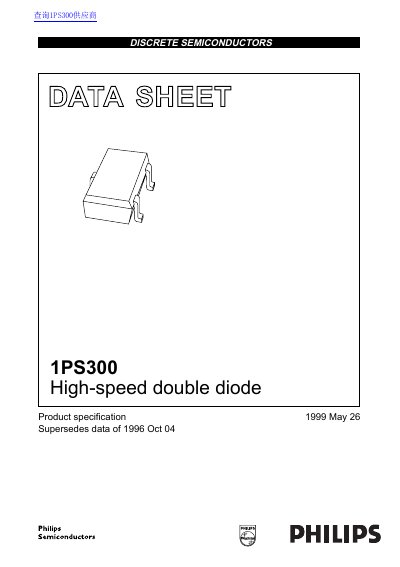

The document is a product specification datasheet for the Philips 1PS300, a high-speed double diode fabricated in planar technology. It is encapsulated in a very small rectangular SOT323 (SC-70) plastic surface-mount device (SMD) package. The device features two PIN diodes with common anodes, designed for high-speed switching applications in surface-mounted circuits.
| Reverse recovery time | max. 4 ns |
|---|---|
| Continuous reverse voltage | max. 80 V |
| Repetitive peak forward current | max. 500 mA |
The device can handle a maximum continuous reverse voltage of 80 V.
