The Z0103/07/09 series triacs product data manual introduces the characteristics and features of triacs, including blocking voltage, gate current sensitivity, package and other information.

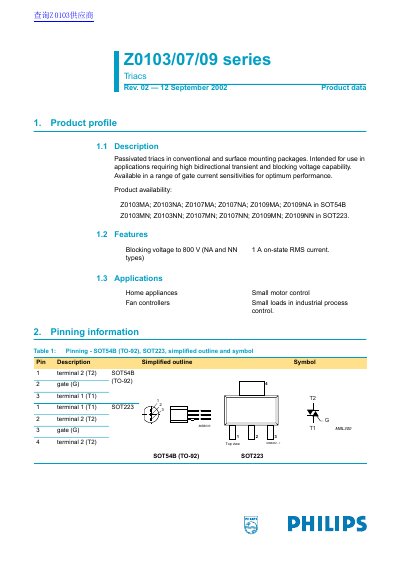

This document provides product data for the Philips Z0103/07/09 series of passivated triacs, available in SOT54B (TO-92) and SOT223 packages. These devices are intended for applications requiring high bidirectional transient and blocking voltage capability, such as home appliances, small motor control, and industrial process control.
| Blocking voltage | 600V or 800V |
|---|---|
| On-state RMS current | 1 A |
| Gate trigger current (Z0103) | 3 mA |
| Gate trigger current (Z0107) | 5 mA |
| Gate trigger current (Z0109) | 10 mA |
| On-state voltage | 1.3 V to 1.6 V |
| Thermal resistance junction-to-lead (SOT54B) | 60 K/W |
They are intended for home appliances, small motor control, fan controllers, and small loads in industrial process control.
The maximum non-repetitive peak on-state current is 8 A for a 20 ms surge and 8.5 A for a 16.7 ms surge.
