1PS10SB82 is a Schottky barrier diode produced by Philips Semiconductors. It has the characteristics of low forward voltage, low diode capacitance, leadless ultra small plastic package, etc. It is widely used in various wireless communication, digital cameras, PDAs and other devices.

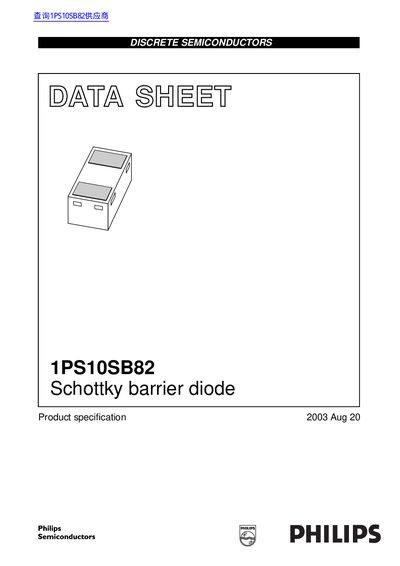

This document is a product specification datasheet for the Philips 1PS10SB82, an epitaxial Schottky barrier diode. The device is encapsulated in a leadless ultra-small plastic package (SOD882) with dimensions of 1.0 mm x 0.6 mm x 0.5 mm. It is designed for applications such as UHF mixers, modulators, sampling circuits, phase detectors, and PCMCIA cards.
| Package Type | SOD882 leadless ultra small plastic package |
|---|---|
| Dimensions | 1.0 mm x 0.6 mm x 0.5 mm |
| Continuous Reverse Voltage | 15 V |
| Continuous Forward Current | 30 mA |
| Storage Temperature | -65 to +150 °C |
| Junction Temperature | 150 °C |
| Forward Voltage (Typical) | 340 mV @ 1 mA |
| Forward Voltage (Typical) | 700 mV @ 30 mA |
| Diode Capacitance (Typical) | 1 pF |
| Thermal Resistance (Junction to Ambient) | 500 K/W |
The device is suitable for UHF mixers, modulators, sampling circuits, phase detectors, and PCMCIA cards.
Reflow soldering is the only recommended soldering method for this component.
Yes, it is an ESD sensitive device and handling precautions should be observed.
