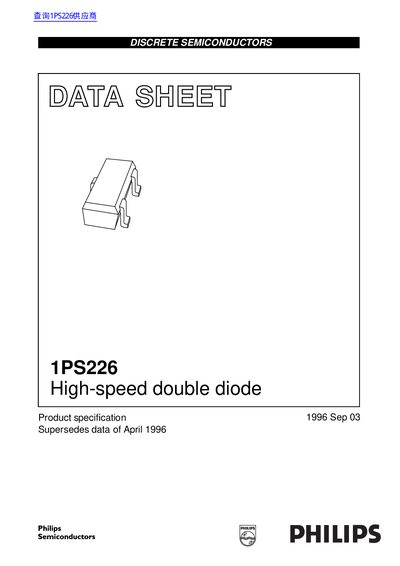

1PS226 is a high-speed double diode product of Philips Semiconductors. It has a small package (SC59) and is suitable for high-frequency switching applications.
This document is a product specification datasheet for the Philips 1PS226, a discrete semiconductor device consisting of two PIN high-speed switching diodes connected in series. The component is fabricated using planar technology and encapsulated in a small plastic SMD SC59 package.
Key features include a maximum continuous reverse voltage of 80 V and a high switching speed with a reverse recovery time of up to 4 ns. The datasheet provides comprehensive electrical characteristics, thermal data, graphical performance curves, and mechanical dimensions for the device.
| Product Type | High-speed double diode |
|---|---|
| Continuous reverse voltage (max) | 80 V |
| Repetitive peak forward current (max) | 500 mA |
| Reverse recovery time (max) | 4 ns |
The maximum continuous reverse voltage is 80 V.
Yes, it is designed for high-speed switching in surface mounted circuits.
