The document describes the features and characteristics of the 1PS302 high-speed double diode, including very small plastic SMD package, high switching speed, maximum continuous reverse voltage, and repetitive peak reverse voltage.

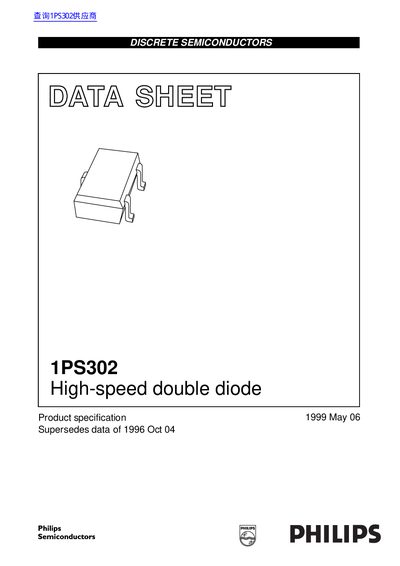

The document is a product specification data sheet for the Philips 1PS302, described as a high-speed double diode fabricated in planar technology. It features two PIN diodes connected in series within a very small plastic SMD SC70-3 package.
Key electrical characteristics include a continuous reverse voltage of max. 80V and a repetitive peak forward current of max. 500mA per device. The datasheet details limiting values, electrical parameters such as forward voltage and reverse recovery time, thermal resistance, and graphical data regarding capacitance and current limits.
| Continuous reverse voltage (max) | 80 V |
|---|---|
| Repetitive peak reverse voltage (max) | 85 V |
| Repetitive peak forward current (max) | 500 mA |
| High switching speed (max) | 4 ns |
The device can handle a maximum continuous reverse voltage of 80 V.
