The 1PS184 is a high-speed double diode with a small plastic SMD package, high switching speed (max. 4 ns), maximum continuous reverse voltage of 80V, maximum repetitive peak reverse voltage of 85V, and maximum repetitive peak forward current of 500mA. It is primarily used for high-speed switching in surface mounted circuits.

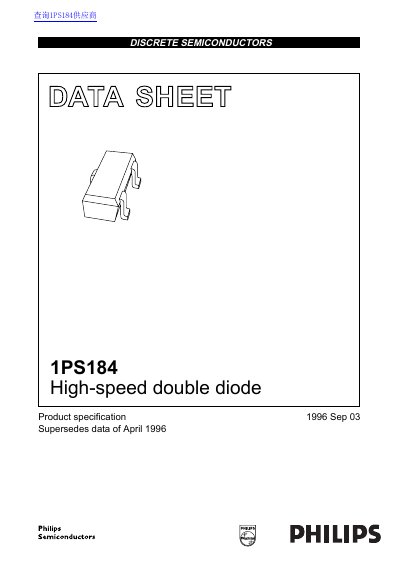

This document is a product specification datasheet for the Philips 1PS184, a high-speed double diode designed for surface-mounted circuits. The device consists of two high-speed switching diodes with common cathodes, fabricated in planar technology and encapsulated in a small plastic SMD SC59 package.
The datasheet provides comprehensive technical data including limiting values, electrical characteristics, and thermal characteristics. Key features include a maximum switching speed of 4 ns, a continuous reverse voltage of 80 V, and a repetitive peak forward current of 500 mA. It also includes graphical data for current, capacitance, and recovery times, along with package outline dimensions.
| Package Type | SC59 |
|---|---|
| Switching Speed | 4 ns |
| Continuous Reverse Voltage | 80 V |
| Repetitive Peak Forward Current | 500 mA |
The maximum continuous reverse voltage is 80 V.
The maximum repetitive peak forward current is 500 mA.
