This document describes the features and characteristics of the BZT03 series voltage regulator diodes, including glass passivated, high maximum operating temperature, low leakage current, excellent stability, etc. It also provides information on the available zener working voltage range and transient suppressor stand-off voltage range.

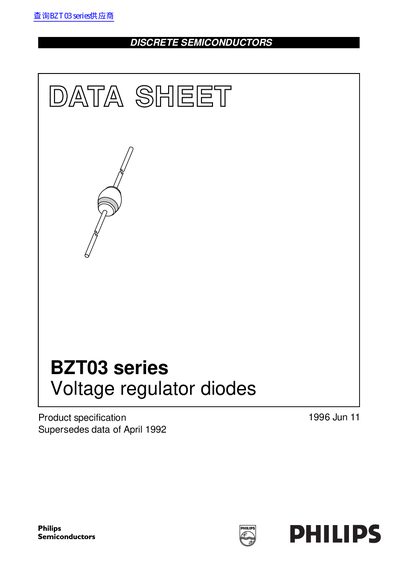

This datasheet provides product specifications for the Philips BZT03 series of discrete semiconductors, specifically voltage regulator diodes and transient suppressor diodes. The document details the features of the rugged glass SOD57 package, which is hermetically sealed and fatigue-free. It covers a wide range of working voltages from 7.5V to 430V.
| Package Type | Rugged glass SOD57 package |
|---|---|
| Maximum Total Power Dissipation | 3.25 W |
| Storage Temperature | -65 to +175 °C |
| Junction Temperature | -65 to +175 °C |
| Forward Voltage (Max) | 1.2 V |
| Zener Working Voltage Range | 7.5 to 270 V |
| Transient Suppressor Stand-off Voltage Range | 6.2 to 430 V |
The device uses a rugged glass SOD57 package.
The maximum total power dissipation is 3.25 W.
The storage temperature range is from -65°C to +175°C.
