The BZB984 series are low power voltage regulator diodes in a SOT663 ultra small plastic SMD package.

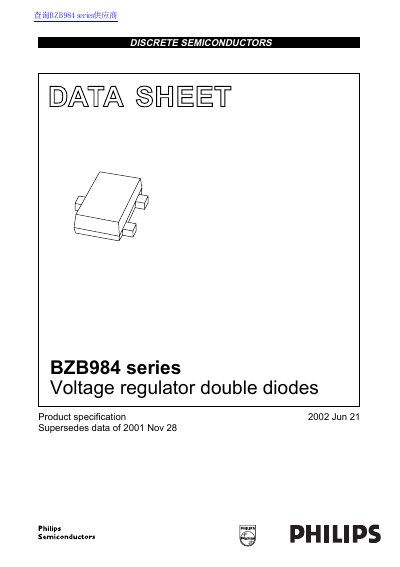

This document is a product specification datasheet for the Philips BZB984 series, which consists of low-power voltage regulator double diodes. The devices are housed in an ultra-small flat plastic SMD package (SOT663) and are designed for general regulation functions as well as ESD and surge protection. The series covers a working voltage range from 2.4V to 15V (E24 range).
| Total power dissipation | max. 425 mW |
|---|---|
| VZ tolerance | Approx. 5% |
| Package type | SOT663 |
| Working voltage range | 2.4 to 15 V |
| Continuous forward current | 200 mA |
| Storage temperature | -65 to +150 °C |
The series is suitable for general regulation functions and ESD and surge protection.
The maximum total power dissipation is 425 mW when two diodes are loaded.
