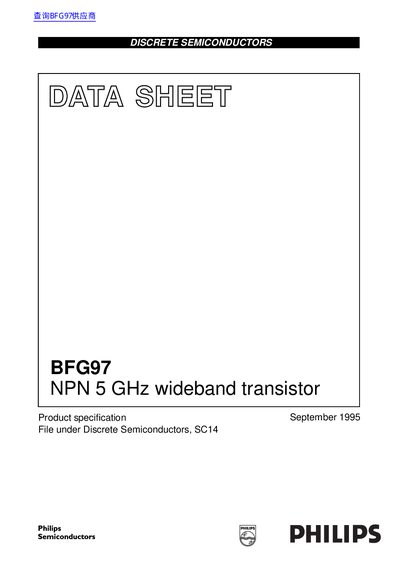

BFG97 NPN 5 GHz wideband transistor is an NPN type transistor produced by Philips Semiconductors, with a SOT223 package, which is mainly used in MATV applications.
The Philips BFG97 is an NPN planar epitaxial transistor designed for use in MATV (Master Antenna Television) applications. It is mounted in a plastic SOT223 envelope and features excellent output voltage capabilities. The document serves as a product specification sheet containing electrical characteristics, thermal resistance data, and application circuit information.
| Collector-base voltage | 20 V |
|---|---|
| Collector-emitter voltage | 15 V |
| DC collector current | 100 mA |
| Transition frequency | 5.5 GHz |
| Maximum unilateral power gain | 16 dB |
| Output voltage | 700 mV |
The maximum collector-base voltage is 20 V.
The total power dissipation is 1 W up to a temperature of 125 °C.
