BZB784 series is low-power voltage regulator diodes in a small SOT323 (SC-70) package.

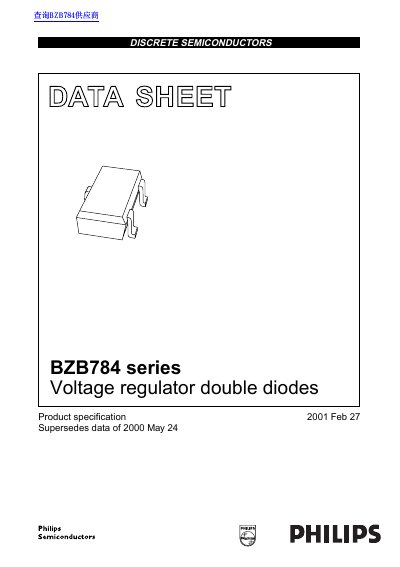

This document is a product specification datasheet for the Philips BZB784 series of voltage regulator double diodes. It details the device features, including a total power dissipation of max. 350 mW and a working voltage range from 2.4 to 15 V. The components are designed for general regulation functions and ESD/surge protection applications.
| Total power dissipation (2 diodes loaded) | 350 mW |
|---|---|
| Working voltage range | 2.4 to 15 V |
| Continuous forward current | 200 mA |
| Package type | SOT323 (SC-70) |
| Storage temperature | -65 to +150 °C |
They are used for general regulation functions and ESD and surge protection.
The maximum junction temperature is 150 °C.
