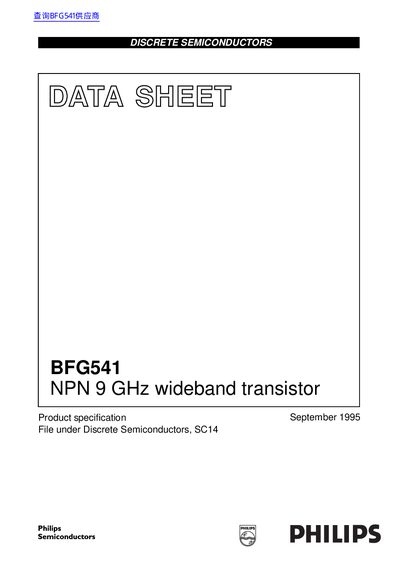

Philips BFG541 NPN Transistor Datasheet

Philips BFG541 NPN 9 GHz wideband transistor, features high power gain, low noise figure, high transition frequency, gold metallization ensures excellent reliability

Brand: Philips
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 12
File format: PDF
File size: 145 KB
Published: 06 July, 2012
Updated: 30 September, 2023
MD5 checksum: 9CD3BC3DA621CC3A00C0EF22F12EE210
PDF: Philips BFG541 NPN Transistor Datasheet PDF

About this manual

This datasheet describes the Philips BFG541, a silicon planar epitaxial NPN transistor designed for high power gain and low noise figure in the GHz range. It is suitable for use in analog and digital cellular telephones, cordless phones, radar detectors, satellite TV tuners, and repeater amplifiers.

What's inside

Features
Description
Pinning
Quick Reference Data
Limiting Values
Thermal Resistance
Characteristics

Specifications

DC current gain (hFE) typical	120
Noise figure (F)	1.8 dB

Frequently asked questions

What is the package type for the BFG541?

The transistors are mounted in a plastic SOT223 envelope.

What applications is the BFG541 transistor intended for?

It is intended for wideband applications such as analog and digital cellular telephones, cordless telephones, radar detectors, and satellite TV tuners.
