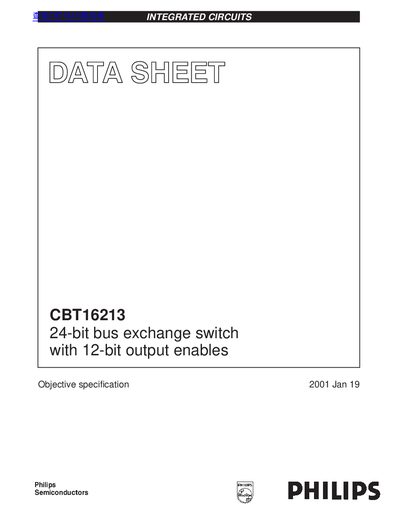

The CBT16213 is a 24-bit bus exchange switch with 12-bit output enables. It provides 5 Ohm switch connection between two ports, TTL compatible control input levels, and plastic shrink small outline (SSOP) and thin shrink small outline (TSSOP) package options.
The Philips CBT16213 is an integrated circuit designed as a 24-bit high-speed TTL-compatible bus switch or a 12-bit bus exchanger. It facilitates data exchanging between four signal ports via data-select terminals and features a low on-state resistance to minimize propagation delay. The device is available in 56-pin Plastic SSOP and TSSOP packages.
| Operating temperature range | -40 to +85 °C |
|---|---|
| Package options | SSOP and TSSOP |
The device uses TTL compatible control input levels.
The maximum junction temperature of this integrated circuit should not exceed 150 °C.
