The CBT16292 is a 12-bit 1:2 switch with internal pull-down resistors

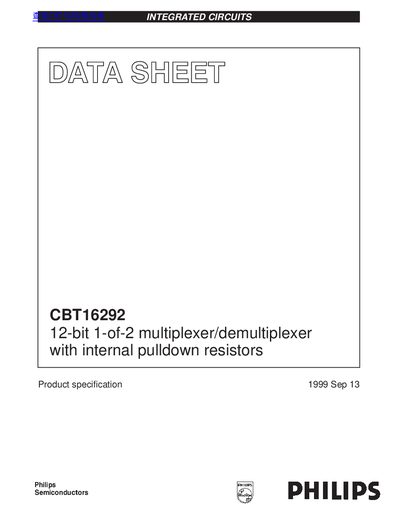

The Philips CBT16292 is a 12-bit 1-of-2 high-speed TTL-compatible multiplexer/demultiplexer designed with internal pulldown resistors. It features a break-before-make switching capability and latch-up protection exceeding 500 mA per JESD78 standards. The device is characterized for operation over a temperature range of -40°C to +85°C.
| Number of bits | 12-bit |
|---|---|
| Configuration | 1-of-2 |
| Internal resistors | Internal pulldown resistors |
| Operating temperature | -40°C to +85°C |
| Package type | 56-Pin Plastic TSSOP Type II |
| Latch-up protection | > 500 mA |
Yes, the device includes internal pulldown resistors to ground.
The absolute maximum DC supply voltage rating is +7.0 V.
