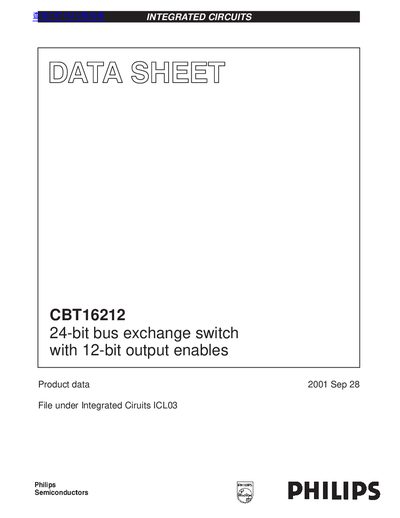

The CBT16212 is a 24-bit bus exchange switch with 12-bit output enables produced by Philips Semiconductors. It has a 5Ω switch connection, TTL compatible control input levels, 100mA latch-up testing, 1500V HBM ESD protection and 1000V CDM ESD protection.
The document describes the CBT16212, an integrated circuit designed as a high-speed TTL-compatible bus switch or exchanger. It provides 24 bits of switching capability between four signal ports via data-select terminals (S0-S2). The device features low on-state resistance for minimal propagation delay and operates within a temperature range of -40 to +85°C.
| Operating Temperature Range | -40 to +85 °C |
|---|---|
| Input Capacitance (Typical) | 45 pF |
| Output Capacitance (Typical) | 11.5 pF |
| DC Supply Voltage Range | -0.5 to +7.0 V (Max) |
| Output Current (Low State) | 128 mA |
The CBT16212 operates from -40 to +85°C.
The device supports a DC supply voltage of up to 7.0 V and an output current of 128 mA.
