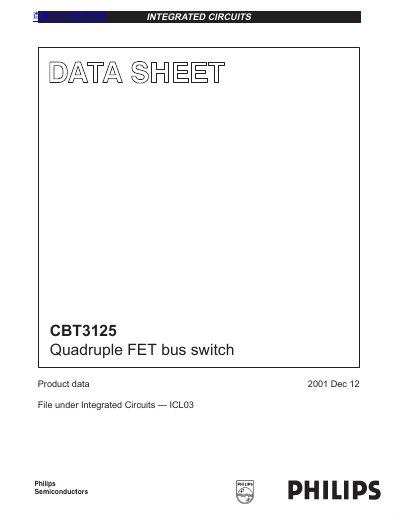

CBT3125 Quadruple FET bus switch product data, including product description, package, pin diagram, ordering information, etc.
The document describes the CBT3125, a quadruple FET bus switch featuring four independent line switches. Each switch is disabled when its associated Output Enable (OE) input is HIGH. The device supports TTL-compatible input levels and includes ESD protection exceeding 2000 V HBM.
| Product Type | Quadruple FET bus switch |
|---|---|
| Supply Voltage Range (Vcc) | -0.5 to 7 V |
| Operating Temperature Range | -40 to +85 °C |
| Continuous Channel Current | 128 mA |
| ESD Protection (HBM) | > 2000 V |
The device supports a continuous channel current of up to 128 mA.
The recommended operating ambient temperature range extends to +85 °C.
The maximum recommended supply voltage is 5.5 V.
