The BLF1048 is a UHF power LDMOS transistor with high power gain, easy power control, and excellent ruggedness. It is designed for communication transmitter applications in the UHF frequency range.

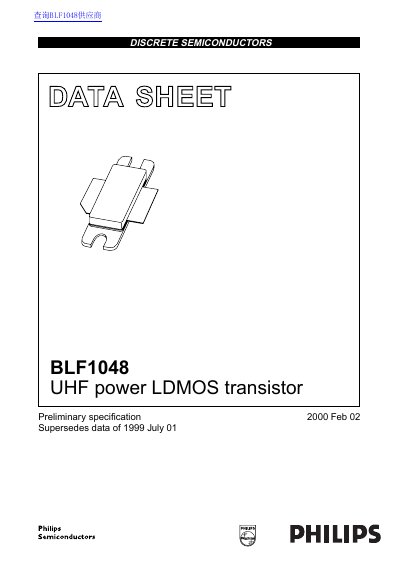

This document is a preliminary specification datasheet for the Philips BLF1048, a UHF power LDMOS transistor designed for communication transmitter applications in the UHF frequency range. The device features high power gain, easy power control, and excellent ruggedness, operating from HF to 1 GHz. It is encapsulated in a 2-lead flange package (SOT502A) with a ceramic cap, where the common source is connected to the mounting flange.
| Mode of Operation | CW, class-AB |
|---|---|
| Drain-Source Voltage (VDS) | 65 V |
| Gate-Source Voltage (VGS) | +20 V |
| Drain Current (ID) | 9 A |
| Junction Temperature (Tj) | 200 °C |
| Package Type | SOT502A |
The device is designed for broadband operation from HF to 1 GHz.
The maximum drain-source voltage is 65 V.
The maximum junction temperature is 200 °C.
The maximum drain current is 9 A.
