BLF1822-10 is a UHF power LDMOS transistor with the following features: output power of 10W, gain of 18.5dB at 900MHz, 13.5dB at 2200MHz, efficiency of 39% at 900MHz, 34% at 2200MHz, dim of -31dBc at 900MHz, -28dBc at 2200MHz, etc.

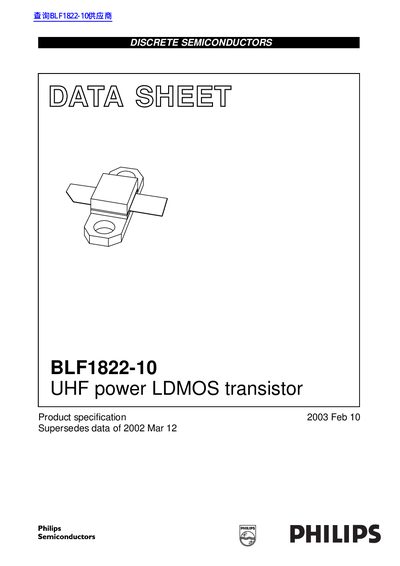

This document is a product specification datasheet for the Philips BLF1822-10, a 10 W UHF power LDMOS transistor designed for broadband operation from HF to 2200 MHz. It is intended for use in RF power amplifiers for GSM, EDGE, CDMA, and W-CDMA base stations, as well as broadcast drivers. The device features a typical output power of 10 W (PEP) and operates in a common source class-AB circuit.
| Output Power | 10 W (PEP) |
|---|---|
| Gain at 900 MHz | 18.5 dB |
| Gain at 2200 MHz | 13.5 dB |
| Efficiency at 900 MHz | 39% |
| Efficiency at 2200 MHz | 34% |
| Drain-Source Voltage | 65 V |
| Drain Current (DC) | 2.2 A |
| Operating Frequency Range | HF to 2200 MHz |
The typical intermodulation distortion is -31 dBc at 900 MHz.
Yes, the RF performance data is provided for CW, class-AB (2-tone) operation.
