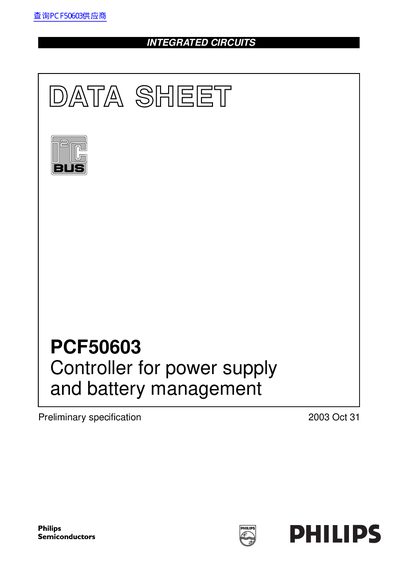

PCF50603 is a power supply and battery management controller produced by Philips Semiconductors. It includes system control, power voltage generation, battery management and SIM card interface.
The PCF50603 is a highly integrated solution designed for mobile phones. It manages power supply generation, battery charging (supporting NiCd/NiMH or Li-ion), and includes a Subscriber Identity Module (SIM) card interface with dedicated supply regulation.
Controlled via a 400 kHz I2C-bus serial interface by a host controller, the device features multiple Linear Regulator (LDO) outputs for various system voltages. Key functions include battery voltage monitoring, backup battery charging, thermal protection, and general-purpose outputs.
| Operating temperature range | -40 °C to +85 °C |
|---|---|
| Minimum charger voltage (enabling MBC module) | -2.7 V |
| High clock frequency (CCO) | 3.6 MHz |
| 32 kHz clock availability | Yes |
The device operates from a three cell NiCd/NiMH or a one cell Li-ion battery pack.
The part number PCF50603HN corresponds to an HVQFN48 plastic thermal enhanced very thin quad flat package.
