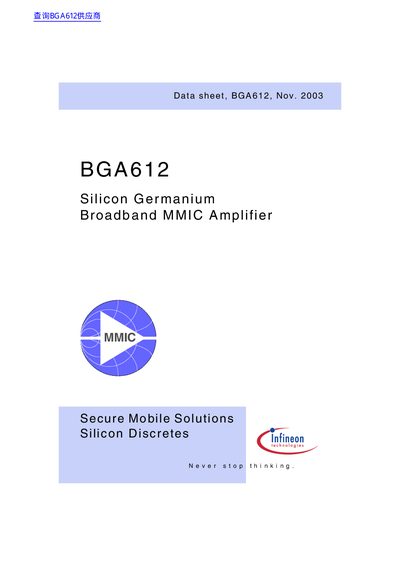

Infineon BGA612 Silicon Germanium Broadband MMIC Amplifier Data Sheet

BGA612 is a silicon germanium broadband MMIC amplifier released by Infineon Technologies AG. The product has good performance characteristics

Brand: Infineon
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 490 KB
Published: 04 July, 2012
Updated: 30 September, 2023
MD5 checksum: D45E4D909899A2945E82A43303C10FBD
PDF: Infineon BGA612 Silicon Germanium Broadband MMIC Amplifier Data Sheet PDF

About this manual

The BGA612 is a broadband matched, general-purpose MMIC amplifier in a Darlington configuration based on Infineon Technologies' B7HF Silicon Germanium technology. It is optimized for a typical supply current of 20mA and features a 3 dB-bandwidth from DC to 2.8 GHz with a typical gain of 17.0 dB at 1.0 GHz.

What's inside

Features
Applications
Description
Maximum Ratings
Electrical Characteristics
S-Parameter
Power Gain
Output Compression Point
Device Current
Noise Figure

Specifications

3 dB-bandwidth	DC to 2.8 GHz
Typical gain at 1.0 GHz	17.0 dB
Maximum device voltage	2.8 V
Maximum device current	80 mA
Maximum junction temperature	150 °C

Frequently asked questions

What are the main applications for the BGA612?

It is used as a driver amplifier for GSM/PCS/CDMA/UMTS and as a broadband amplifier for SAT-TV, LNBs, and CATV.

What is the technology used in the BGA612?

The BGA612 is based on Infineon Technologies' B7HF Silicon Germanium technology.
