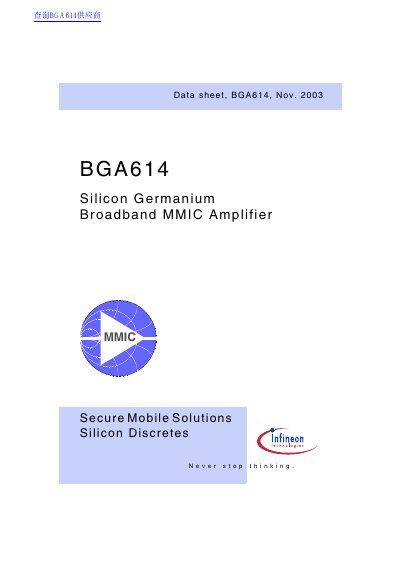

Secure Mobile Solutions Silicon Discretes Data sheet introduces the features and characteristics of the BGA614 Silicon Germanium Broadband MMIC Amplifier.
The BGA614 is a broadband matched, general purpose MMIC amplifier designed for use as a driver amplifier or broadband application. It features a Darlington configuration and is optimized for a typical supply current of 40mA.
Based on Infineon Technologies' B7HF Silicon Germanium technology, the device offers a 3 dB-bandwidth from DC to 2.4 GHz with a typical gain of 18.5 dB at 1.0 GHz. It is designed for applications including GSM/PCS/CDMA/UMTS drivers and broadband amplifiers for SAT-TV & LNBs.
| 3 dB-bandwidth | DC to 2.4 GHz |
|---|---|
| Typical gain at 1.0 GHz | 18.5 dB |
| Technology | Silicon Germanium |
| Package type | SOT343 |
The device provides a typical gain of 18.5 dB at this frequency.
The amplifier can dissipate up to 240 mW under specified conditions.
The noise figure measures 2.30 dB when operating at this frequency.
