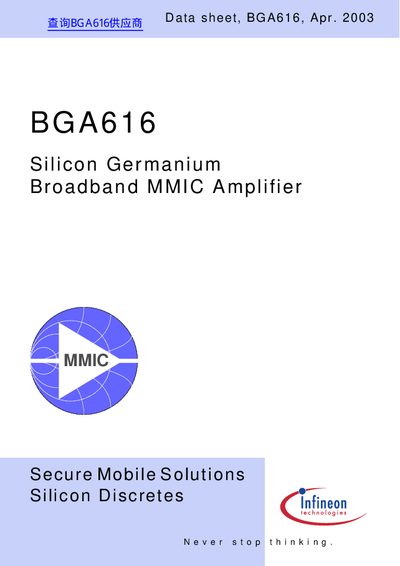

BGA616 is a silicon germanium broadband MMIC amplifier produced by Infineon Technologies
The BGA616 is a broadband matched, general-purpose MMIC amplifier in a Darlington configuration based on Infineon Technologies' B7HF Silicon Germanium technology. It is designed as a cascable 50-ohm gain block with a 3 dB bandwidth from DC to 2.7 GHz, featuring a typical gain of 18.5 dB at 1.0 GHz. The device is optimized for a typical supply current of 60 mA and is available in an SOT343 package.
| 3 dB-bandwidth | DC to 2.7 GHz |
|---|---|
| Typical gain at 1.0 GHz | 18.5 dB |
| Noise figure at 2.0 GHz | 2.90 dB |
| Maximum device voltage | 4.5 V |
| Maximum device current | 80 mA |
| Package type | SOT343 |
The BGA616 is optimized for a typical supply current of 60 mA.
The 3 dB bandwidth ranges from DC to 2.7 GHz.
It is used as a driver amplifier for GSM/PCS/CDMA/UMTS and as a broadband amplifier for SAT-TV, LNBs, and CATV.
