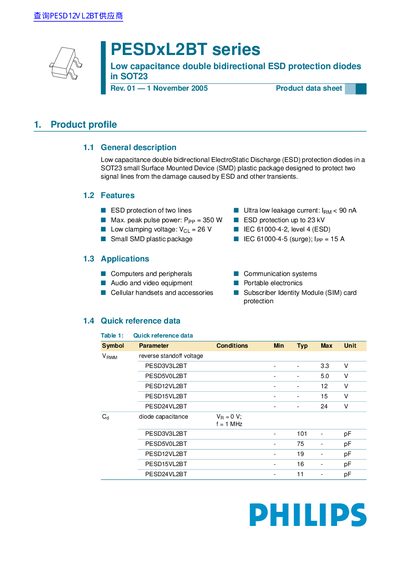

This is a PDF document about the PESDxL2BT series product. The product is a low capacitance double bidirectional ESD protection diode, packaged in a SOT23 small SMD package. It is designed to protect two signal lines from damage caused by ESD and other transients. The product features ultra low leakage current, maximum peak pulse power, ESD protection up to 23kV, and low clamping voltage. It is suitable for applications such as computers and peripherals, communication systems, audio and video equipment, portable electronics, cellular handsets and accessories, and SIM card protection.
The document describes the PESDxL2BT series, which consists of low capacitance double bidirectional ElectroStatic Discharge (ESD) protection diodes. These components are designed in a small SOT23 surface mounted device (SMD) plastic package to protect two signal lines from damage caused by ESD and other transients. Key features include ultra-low leakage current and high ESD protection ratings up to 23 kV according to IEC 61000-4-2 level 4 standards.
| Max. peak pulse power | 350 W |
|---|---|
| Low clamping voltage | 26 V |
| Ultra low leakage current | In < 90 nA |
| ESD protection rating | 23 kV |
| Reverse standoff voltage (PESD3V3L2BT) | 3.3 V |
| Diode capacitance (PESD3V3L2BT) | 101 pF |
The PESD3V3L2BT and PESD5VOL2BT models have a maximum peak pulse power of 350 W, while other models in the series are rated at 200 W.
The ultra low leakage current specification states that In is less than 90 nA.
