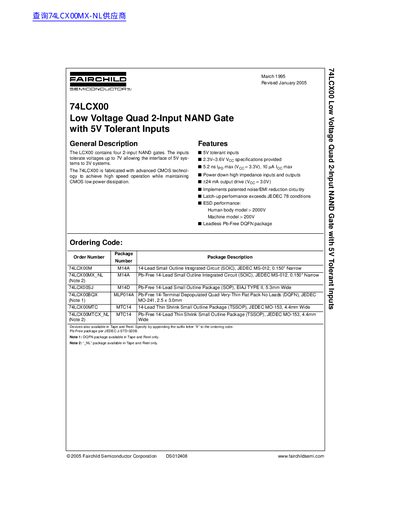

The 74LCX00 is a low voltage quad 2-input NAND gate with 5V tolerant inputs manufactured by Fairchild Semiconductor Corporation. It can interface with 5V systems while maintaining CMOS low power dissipation. The product is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
The 74LCX00 is a low voltage quad 2-input NAND gate fabricated with advanced CMOS technology. It features 5V tolerant inputs, allowing the interface of 5V systems to 3V systems, while maintaining high speed operation and low power dissipation. The device includes patented noise/EMI reduction circuitry and offers various leadless and leaded package options.
| Supply Voltage (Operating) | 2.3V to 3.6V |
|---|---|
| Propagation Delay (Max) | 5.2 ns |
| Output Drive Current | +24 mA |
| Operating Temperature | -40°C to +85°C |
| Input Voltage Tolerance | Up to 7V |
The recommended operating supply voltage range is 2.3V to 3.6V.
Yes, the inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems.
The maximum propagation delay is 5.2 ns when the supply voltage is 3.3V.
