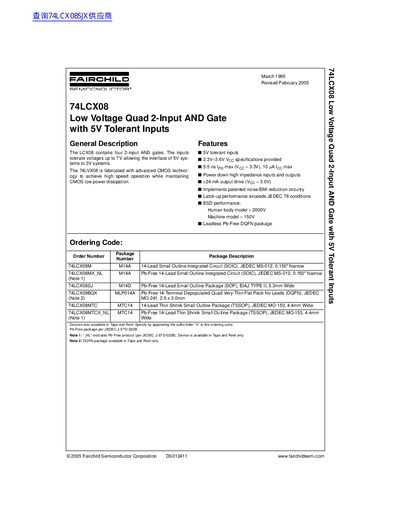

The 74LCX08 is a low voltage quad 2-input AND gate with 5V tolerant inputs from Fairchild Semiconductor Corporation. It is manufactured with advanced CMOS technology and features high speed operation and low power dissipation.
The document is a technical datasheet for the Fairchild Semiconductor 74LCX08 integrated circuit. It details the device's general description as a low-voltage quad 2-input AND gate featuring 5V tolerant inputs, allowing interface between 3V systems and 5V systems.
The text provides comprehensive electrical characteristics, including absolute maximum ratings, recommended operating conditions, DC and AC parameters, and dynamic switching characteristics. It also includes schematic diagrams, connection diagrams for various packages (SOIC, SOP, TSSOP, DQFN), physical dimensions, tape and reel specifications, and a life support policy.
| Operating Temperature Range | -40°C to +85°C |
|---|
Yes, the inputs are tolerant up to 7V, allowing interface with 5V systems.
The maximum output drive current is 24 mA.
