The LCX06 is a low voltage hex inverter/buffer with open drain outputs. The inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems. The outputs of the LCX06 are open drain and can be connected to other open drain outputs to implement active LOW wire AND or active HIGH wire OR functions. The LCX06 is fabricated with advanced CMOS technology to achieve high speed operation while maintaining low power dissipation.

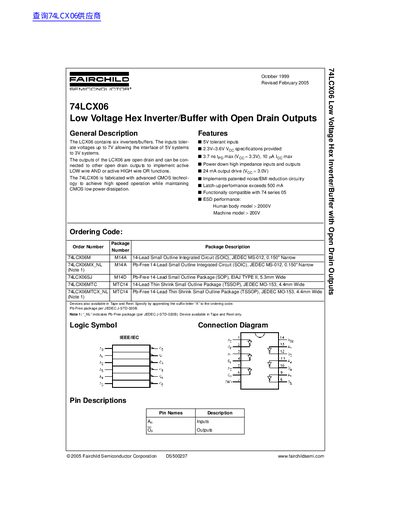

The document describes the 74LCX06, a CMOS integrated circuit containing six inverters or buffers. It features inputs tolerant up to 7V, allowing interface between 5V and 3V systems, and includes patented noise/EMI reduction circuitry. The device offers high-speed operation with low power dissipation.
| Propagation Delay Time Max | 3.7 ns (at Voc = 3.3V) |
|---|---|
| Output Drive Current | 24 mA (at Voc = 3.0V) |
| ESD Performance (Human Body Model) | > 2000V |
The inputs tolerate voltages up to 7V.
Yes, the open drain outputs can be connected to implement active LOW wire AND or active HIGH wire OR functions.
