74LCX10 is a 3V low power triple 3-input NAND gate from Fairchild Semiconductor Corporation, its inputs can tolerate 5V voltage, and it has high speed and low power consumption. It can be used for the interface of 5V and 3V systems.

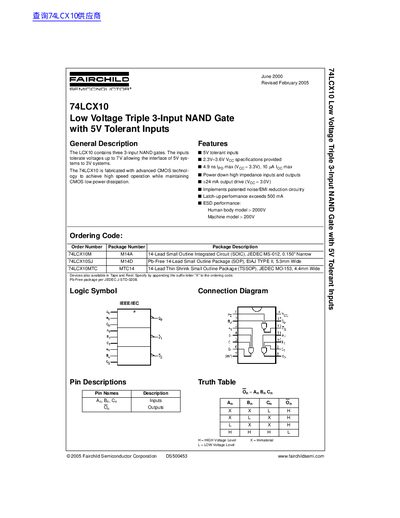

The 74LCX10 is a low voltage triple 3-input NAND gate fabricated with advanced CMOS technology. It features 5V tolerant inputs, allowing the interface of 5V systems to 3V systems, while maintaining low power dissipation and high speed operation. The device includes patented noise/EMI reduction circuitry and exceeds 500 mA for latch-up performance.
| Input Voltage Tolerance | up to 7V |
|---|---|
| Latch-up Performance | exceeds 500 mA |
| Operating Temperature | -40 to 85 °C |
| Propagation Delay (Typical) | 48 ns |
Yes, the inputs tolerate voltages up to 7V, allowing interface to 5V systems.
The device contains three 3-input NAND gates.
The device operates between -40 and +85 °C.
