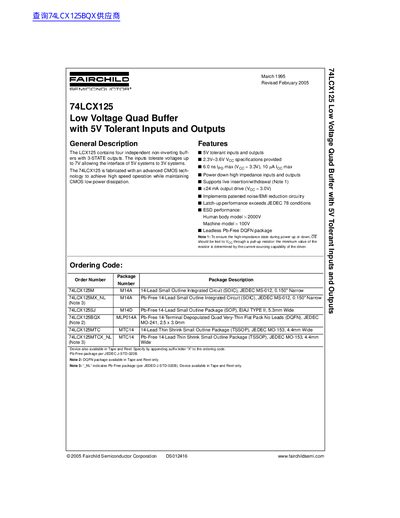

74LCX125 is a low voltage quad buffer with 5V tolerant inputs and outputs, which can interface 5V systems with 3V systems. The device is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
The document describes the 74LCX125BQX, a low-voltage quad buffer featuring four independent non-inverting buffers with 3-STATE outputs. It is designed to interface 5V systems to 3V systems by tolerating input voltages up to 7V while operating on a supply voltage between 2.0V and 3.6V.
| Output Drive Current (3.0V) | +24 mA |
|---|---|
| Propagation Delay (Max, 3.3V) | 6.0ns |
| ESD Performance (Human Body Model) | > 2000V |
Yes, its inputs tolerate voltages up to 7V.
The maximum output drive current is 24 mA.
The device operates from -40.0 to 85.0 °C.
