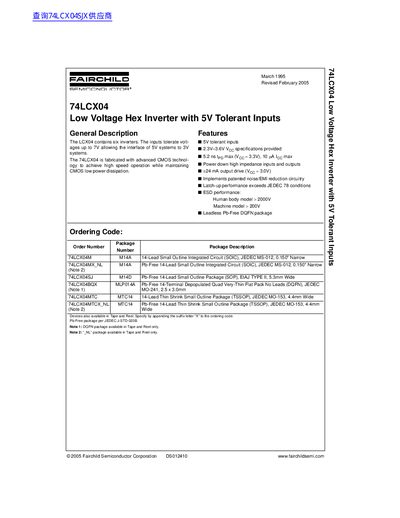

The 74LCX04 is a low voltage hex inverter with 5V tolerant inputs. The inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems. The 74LCX04 is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
The 74LCX04 is a low voltage hex inverter designed with advanced CMOS technology for high-speed operation and low power dissipation. It features 5V tolerant inputs, allowing the interface of 5V systems to 3V systems, and operates within a supply voltage range of 2.3V to 3.6V. The device includes patented noise/EMI reduction circuitry and offers various package options, including SOIC, SOP, TSSOP, and Pb-Free DQFN.
| Supply Voltage (Vcc) | 2.3V - 3.6V |
|---|---|
| Propagation Delay (tpd) | 5.2 ns max |
| Output Drive Current | +24 mA |
| Operating Temperature | -40°C to +85°C |
| Input Voltage Tolerance | Up to 7V |
The supply voltage (Vcc) specifications are provided for 2.3V to 3.6V.
Yes, the inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems.
The maximum propagation delay is 5.2 ns when Vcc is 3.3V.
