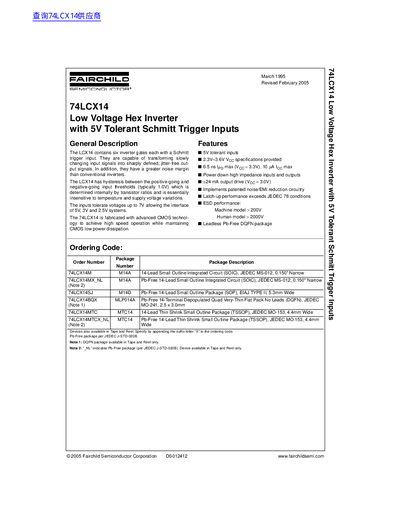

This datasheet provides detailed information about the 74LCX14, including a product overview, features, functions, pinout, package, etc.
The 74LCX14 is a low-voltage hex inverter featuring Schmitt Trigger inputs designed to transform slowly changing input signals into sharply defined, jitter-free output signals. It offers greater noise margin than conventional inverters with hysteresis between input thresholds typically at 1.0V. The device is fabricated with advanced CMOS technology for high-speed operation while maintaining low power dissipation.
| Supply Voltage (Operating) | 2.0V to 3.6V |
|---|---|
| Maximum Propagation Delay | 6.5 ns |
| Output Drive Current | 24 mA |
| Input Voltage Tolerance | Up to 7V |
The hysteresis between the positive-going and negative-going input thresholds is typically 1.0V.
Yes, the inputs tolerate voltages up to 7V, allowing the interface of 5V, 3V, and 2.5V systems.
The maximum supply voltage is 7.0V.
