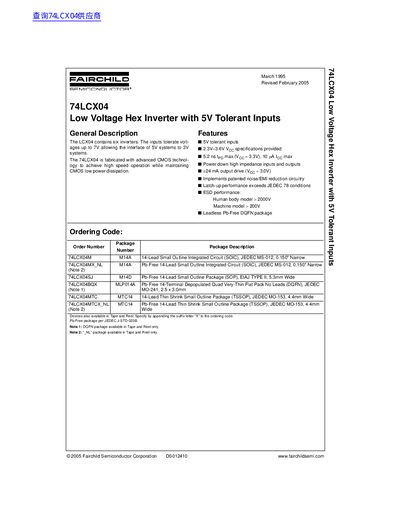

The 74LCX04 is a low voltage hex inverter produced by Fairchild Semiconductor Corporation. It contains six inverters, whose inputs can withstand voltages up to 7V, and can interface 5V systems with 3V systems. The 74LCX04 is manufactured using advanced CMOS technology to achieve high-speed operation while maintaining CMOS low power dissipation.
The document describes the Fairchild Semiconductor 74LCX04 Low Voltage Hex Inverter with 5V Tolerant Inputs. This device contains six inverters fabricated with advanced CMOS technology to achieve high speed operation while maintaining low power dissipation. A key feature is its ability to interface 5V systems to 3V systems, as the inputs tolerate voltages up to 7V.
| Number of Inverters | Six |
|---|---|
| Input Voltage Tolerance | Up to 7V |
| Supply Voltage Range (Operating) | 2.0 V to 3.6 V |
| Output Drive Current (VCC >= 3.0V) | 24 mA |
The recommended operating supply voltage range is from 2.0 V to 3.6 V.
Yes, the inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems.
Available packages include SOIC, SOP, DQFN, and TSSOP.
