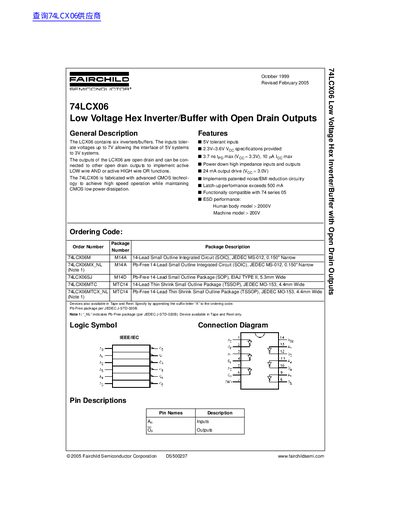

74LCX06 is a low voltage hex inverter/buffer with open drain outputs that can tolerate input voltages up to 7V, allowing interface of 5V systems to 3V systems. The device is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
The document details the 74LCX06 integrated circuit, which contains six inverters or buffers. It is fabricated with advanced CMOS technology to achieve high-speed operation while maintaining low power dissipation. The device features 5V tolerant inputs allowing interface between 3V and 5V systems.
| Propagation Delay Time Max | 3.7 ns (at Voc = 3.3V) |
|---|---|
| Output Drive Current | 24 mA (at Voc = 3.0V) |
| Operating Temperature Range | -40 to +85 °C |
The inputs tolerate voltages up to 7V, allowing interface between 5V systems and 3V systems.
The outputs are open drain, which can be connected together to implement active LOW wire AND or active HIGH wire OR functions.
