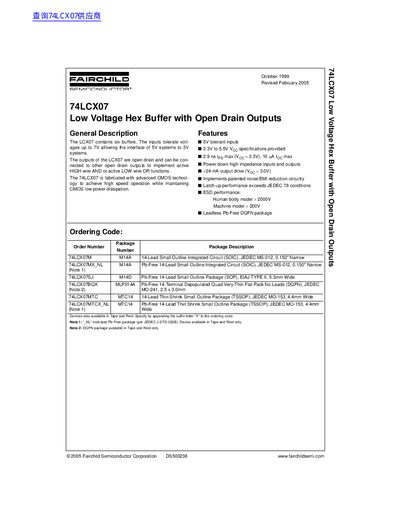

The 74LCX07 is a low voltage hex buffer with open drain outputs, manufactured by Fairchild Semiconductor Corporation. The input can tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems. The output is open drain, which can be connected to other open drain outputs to realize active high wire AND or active low wire OR functions.
The 74LCX07 is a low voltage hex buffer containing six buffers with open drain outputs. It is fabricated with advanced CMOS technology to achieve high-speed operation while maintaining low power dissipation. The device allows the interface of 5V systems to 3V systems because its inputs tolerate voltages up to 7V.
| Supply Voltage (Operating) | 2.3V to 5.5V |
|---|---|
| Input Voltage Tolerance | up to 7V |
| Output Drive Current | +24 mA |
| Operating Temperature Range | -40 to +85 °C |
The device operates with a supply voltage between 2.3V and 5.5V.
Yes, the inputs tolerate voltages up to 7V, allowing this interface.
The outputs are open drain and can be connected to other open drain outputs.
