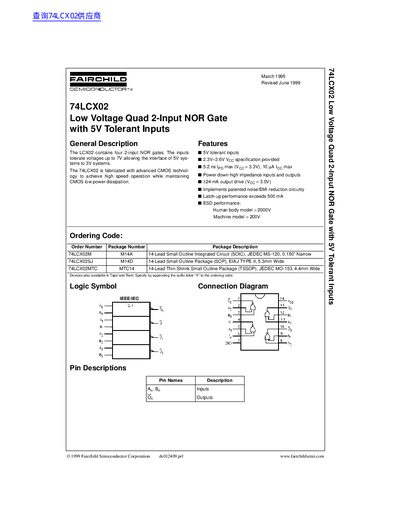

The 74LCX02 is a low voltage quad 2-input NOR gate with 5V tolerant inputs.
The 74LCX02 is a low-voltage quad 2-input NOR gate fabricated with advanced CMOS technology. It contains four gates where the inputs tolerate voltages up to 7V, allowing for the interface of 5V systems to 3V systems while maintaining high speed and low power dissipation.
The device features patented noise/EMI reduction circuitry and latch-up performance exceeding 500 mA. It is available in several package types including SOIC, SOP, and TSSOP, with operating temperatures ranging from -40°C to +85°C.
| Supply Voltage (VCC) | 2.3V–3.6V specification provided; Operating range 2.0 to 3.6V |
|---|---|
| Propagation Delay (tPD) | 5.2 ns max at 3.3V supply |
| Output Drive Current | ±24 mA at VCC = 3.0V |
| Input Tolerance | Up to 7V |
| Latch-up Performance | > 500 mA |
The device operates with a supply voltage (VCC) between 2.3V and 3.6V, though it can tolerate input voltages up to 7V.
The device contains four 2-input NOR gates.
