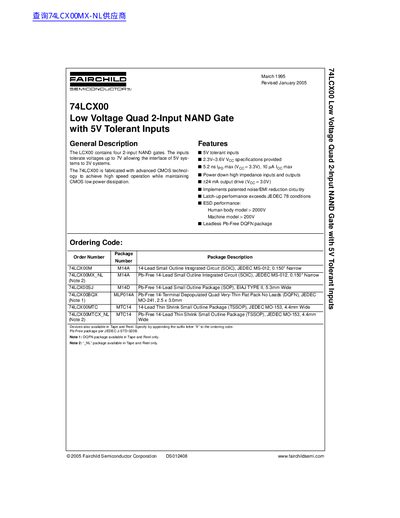

The document describes the 74LCX00 integrated circuit, which contains four 2-input NAND gates fabricated with advanced CMOS technology. It features 5V tolerant inputs allowing interface between 3V and 5V systems while maintaining low power dissipation.
The datasheet provides comprehensive electrical characteristics for supply voltages ranging from 2.3V to 3.6V, including propagation delays, output drive capabilities, and input/output voltage levels. It also details physical dimensions and pin assignments for various packages such as SOIC, SOP, TSSOP, and DQFN.
| Supply Voltage (Operating) | 2.3V to 3.6V |
|---|---|
| Propagation Delay (Max) | 5.2 ns |
| Output Drive Current | +24 mA |
| Input Tolerance | 5V tolerant |
| Operating Temperature Range | -40 to +85 °C |
The recommended operating supply voltage (Vcc) ranges from 2.3V to 3.6V.
Yes, the device features 5V tolerant inputs allowing interface of 5V systems to 3V systems.
