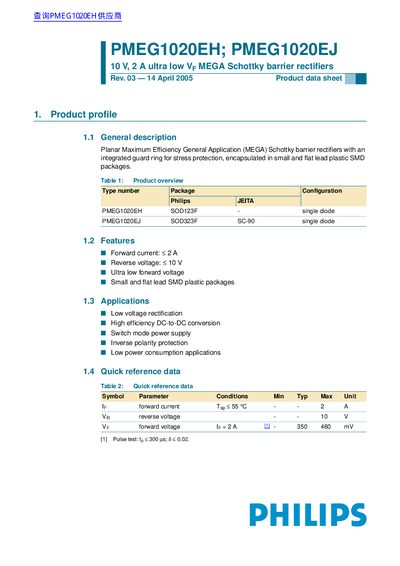

The document describes the features and characteristics of Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers. These devices have an integrated guard ring for stress protection and are encapsulated in small and flat lead plastic SMD packages.
This document is a product data sheet for the Philips PMEG1020EH and PMEG1020EJ Schottky barrier rectifiers. These devices are designed for low voltage rectification, high efficiency DC-to-DC conversion, and switch mode power supply applications. They feature an integrated guard ring for stress protection and are encapsulated in small and flat lead plastic SMD packages.
| Forward current | ≤2 A |
|---|---|
| Reverse voltage | 10 V |
| Junction temperature | 150 °C |
| Package configuration (PMEG1020EH) | SOD123F |
| Package configuration (PMEG1020EJ) | SOD323F |
The maximum forward current is 2 A.
The maximum reverse voltage is 10 V.
The maximum junction temperature is 150 °C.
