This data sheet introduces the features of PMEG2005AEA, PMEG3005AEA and PMEG4005AEA, which are three types of Schottky diodes. These three products have the characteristics of low forward voltage, high surge current and small plastic SMD package. Their applications include low voltage rectification, high efficiency DC/DC conversion, voltage clamping, inverse polarity protection and low power consumption applications.

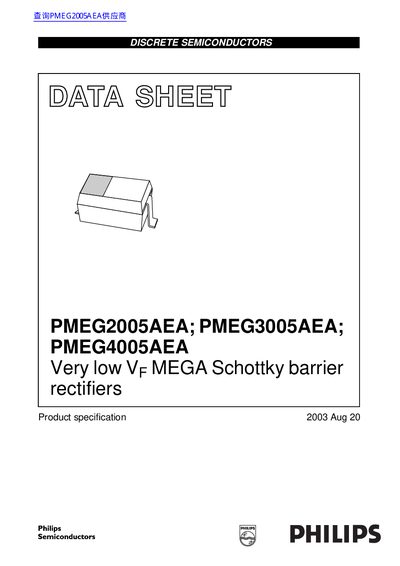

This document is a product specification datasheet for the PMEG2005AEA, PMEG3005AEA, and PMEG4005AEA Very low VF MEGA Schottky barrier rectifiers. These devices feature an integrated guard ring for stress protection and are encapsulated in a very small SOD323 (SC-76) plastic surface-mounted package.
| Reverse voltage PMEG2005AEA | 20 V |
|---|---|
| Reverse voltage PMEG3005AEA | 30 V |
| Reverse voltage PMEG4005AEA | 40 V |
| Junction temperature (max) | +150 °C |
| Operating ambient temperature | -65 +150 °C |
The devices support a maximum continuous forward current of 0.5 A.
The PMEG2005AEA is rated for 20 V, while the PMEG3005AEA and PMEG4005AEA are rated for 30 V and 40 V respectively.
The maximum allowable junction temperature is 150 °C.
