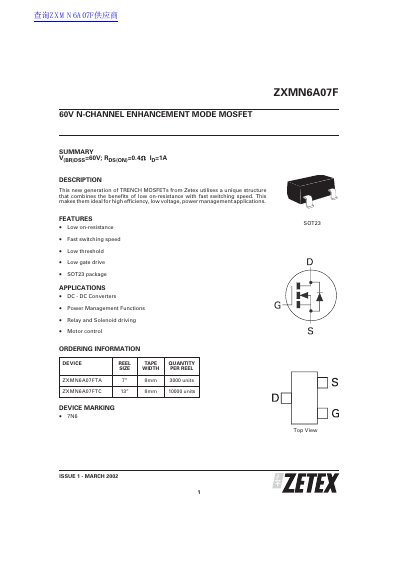

This document is about ZXMN6A07F's datasheet. It is a 60V N-CHANNEL ENHANCEMENT MODE MOSFET with low resistance, high switching speed, low threshold, low gate drive, etc. It is suitable for DC-DC Converters, Power Management Functions, Relay and Solenoid driving, Motor control, etc.
The Zetex ZXMN6A07F is a new generation TRENCH MOSFET designed for high efficiency, low voltage power management applications. It combines low on-resistance with fast switching speed and features a low threshold voltage and low gate drive requirements. The device is available in a SOT23 package.
| Drain-Source Voltage | 60 V |
|---|---|
| On-State Resistance | 0.4 Ohm |
| Package Type | SOT23 |
| Operating Temperature Range | -55 to +150 °C |
It is suitable for DC-DC converters, power management functions, relay and solenoid driving, and motor control.
The device uses a SOT23 package.
The maximum storage temperature is +150 °C.
